Elevate Your Infrastructure with SuperMicro's 1028GR-TR Server
SuperMicro's SuperServer 1028GR-TR has established itself as a formidable solution in the compact server market. An ideal choice for both SMBs and home lab environments, this high-performance server brings robust power, efficiency, and scalability to your IT infrastructure.
The SuperServer 1028GR-TR is a 1U Rackmount server by SuperMicro, notable for its impressive benchmark records with STAC-A2™.
Key features of this server include:
- Dual socket R3 (LGA 2011) supporting Intel® Xeon® processor E5-2600 v4†/ v3 family with QPI up to 9.6GT/s

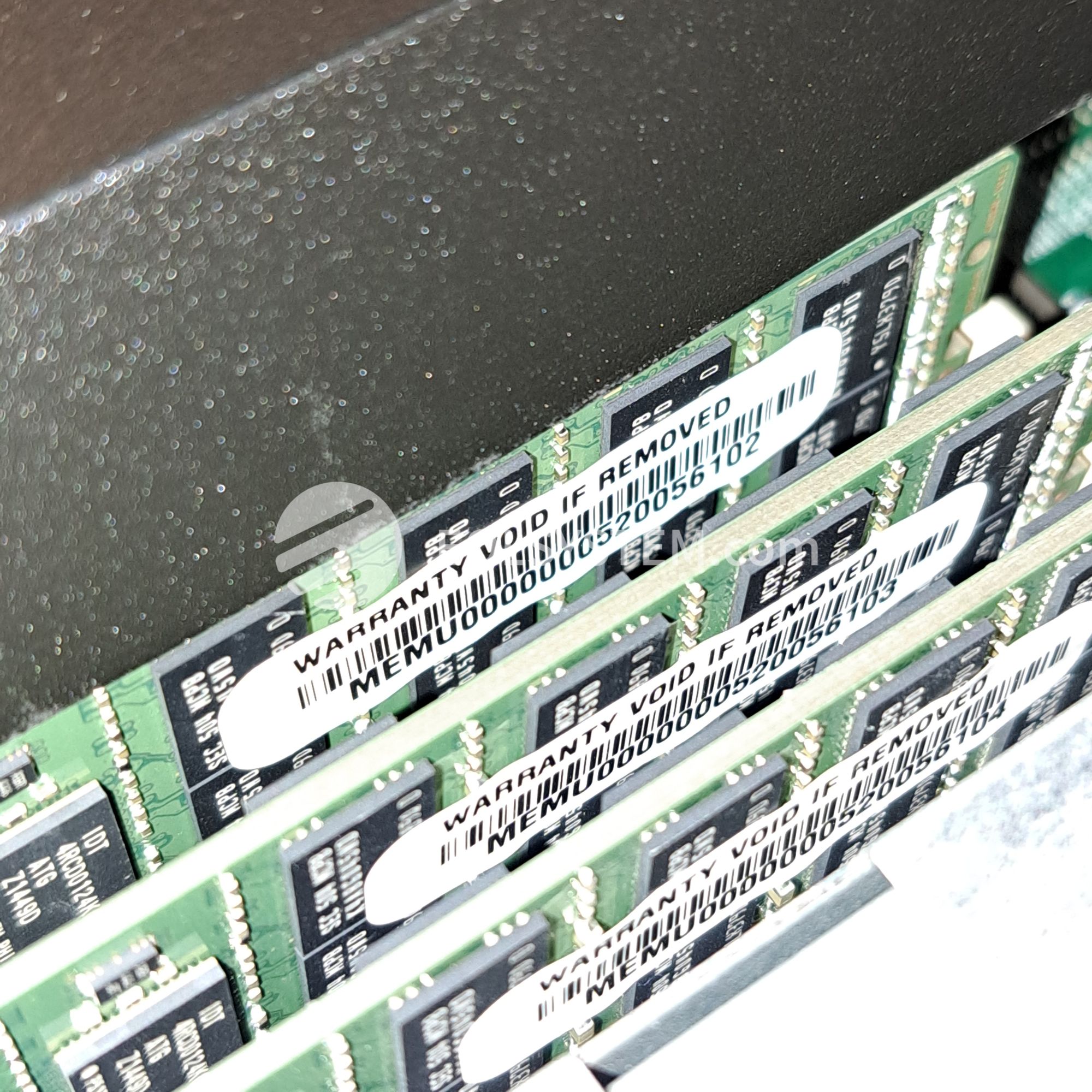

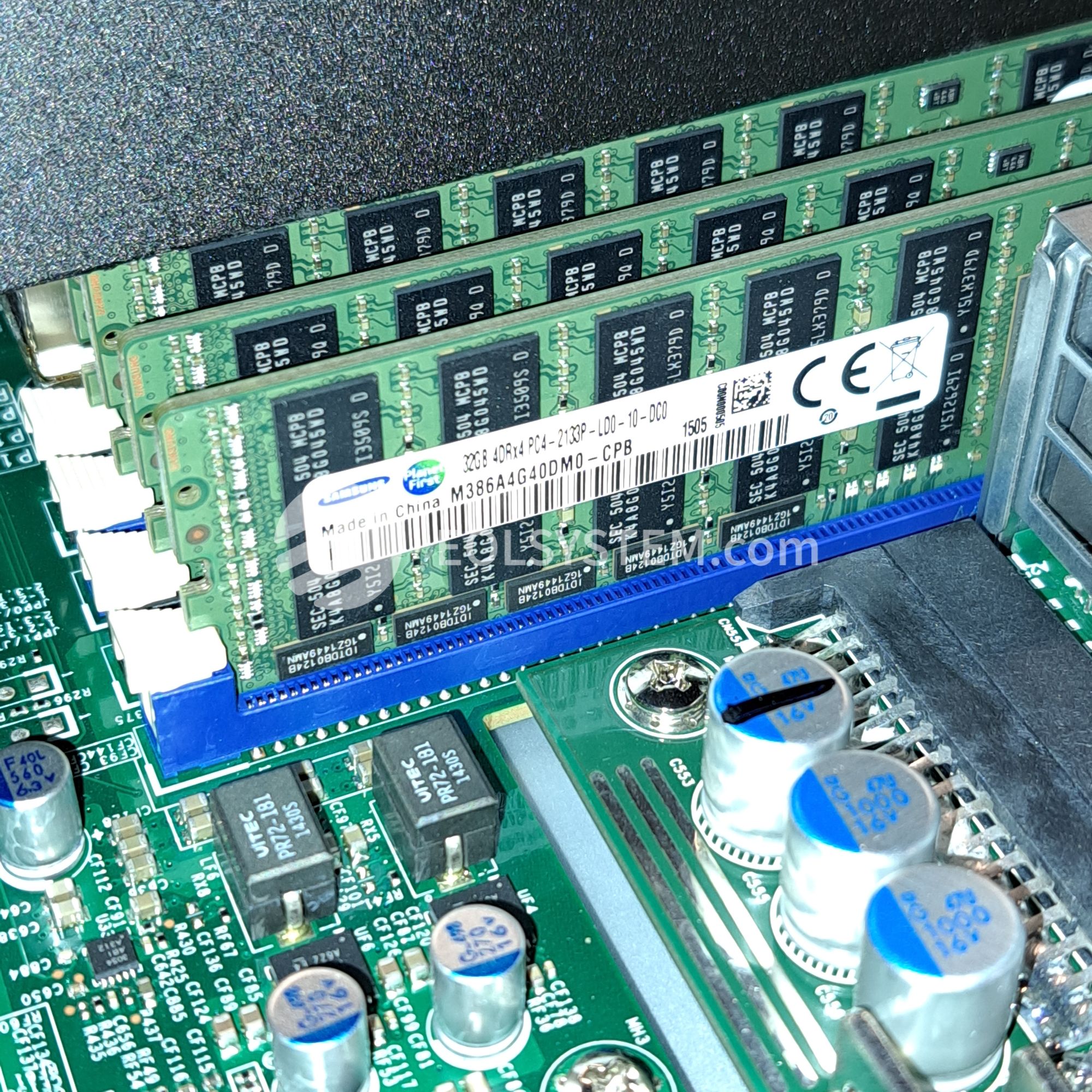

- Up to 2TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz with 16 DIMM slots
- 4 PCI-E 3.0 x16 slots (3 GPU/MIC cards optional), 1 PCI-E 3.0 x8 LP slot
- Intel i350-AM2 Dual port GbE LAN
- 4 Hot-swap 2.5" SATA3 Drive Bays
- 1600W Redundant Power Supplies with Platinum Level (94%+) efficiency

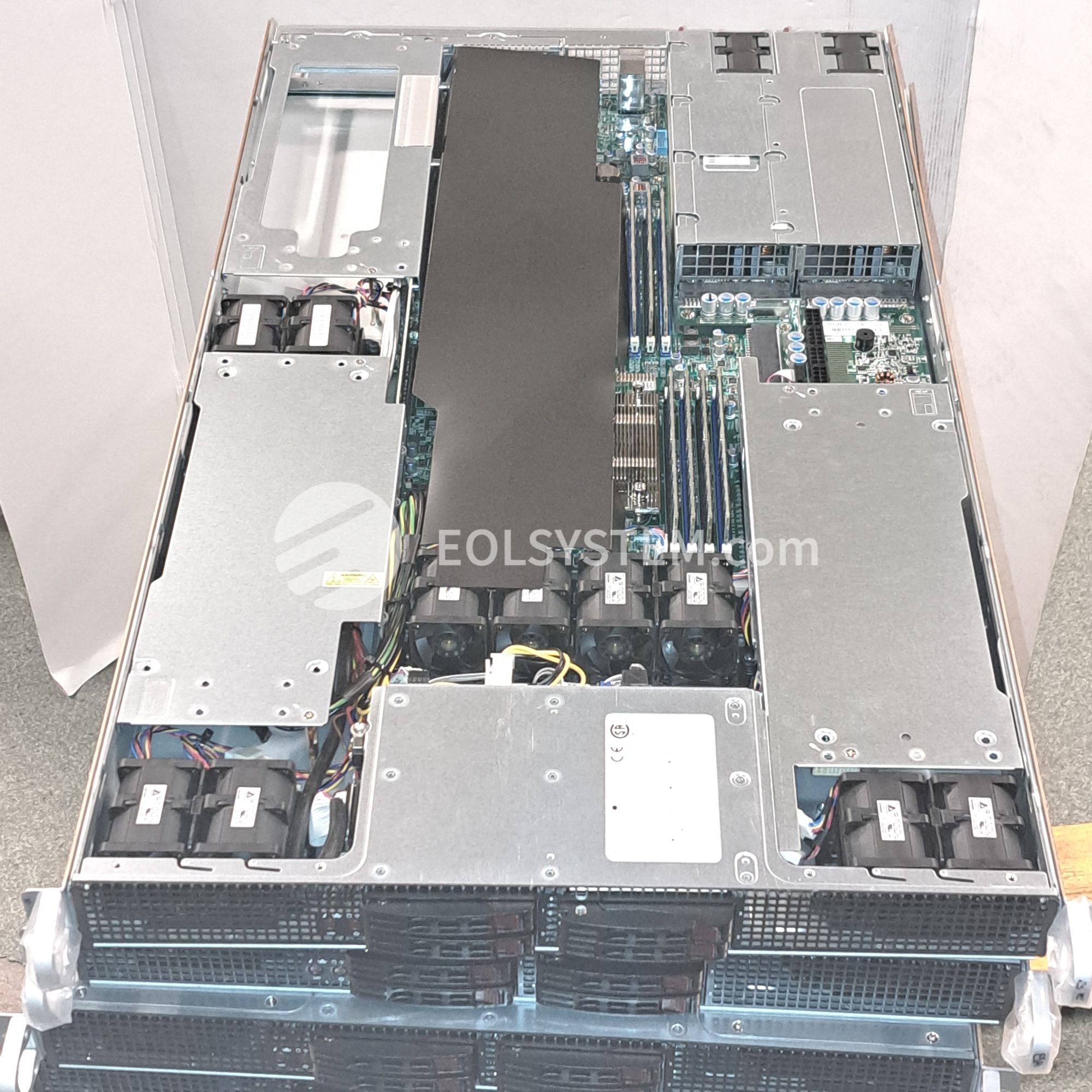

- 10 Counter rotating fans with optimal fan speed control
- Smart server management tools
Other specifics include support for NVIDIA® Tesla® K1/K2/K10/K40/K80/M40/M60/Xeon Phi GPUs, Intel® C612 chipset, and SATA3 (6Gbps) with RAID 0, 1, 5, 10. It has a dedicated IPMI LAN port and supports Intelligent Platform Management Interface v.2.0. The server also has a variety of USB ports (4x USB 3.0 ports, 2x USB 2.0 ports) and features a VGA Connector for video.

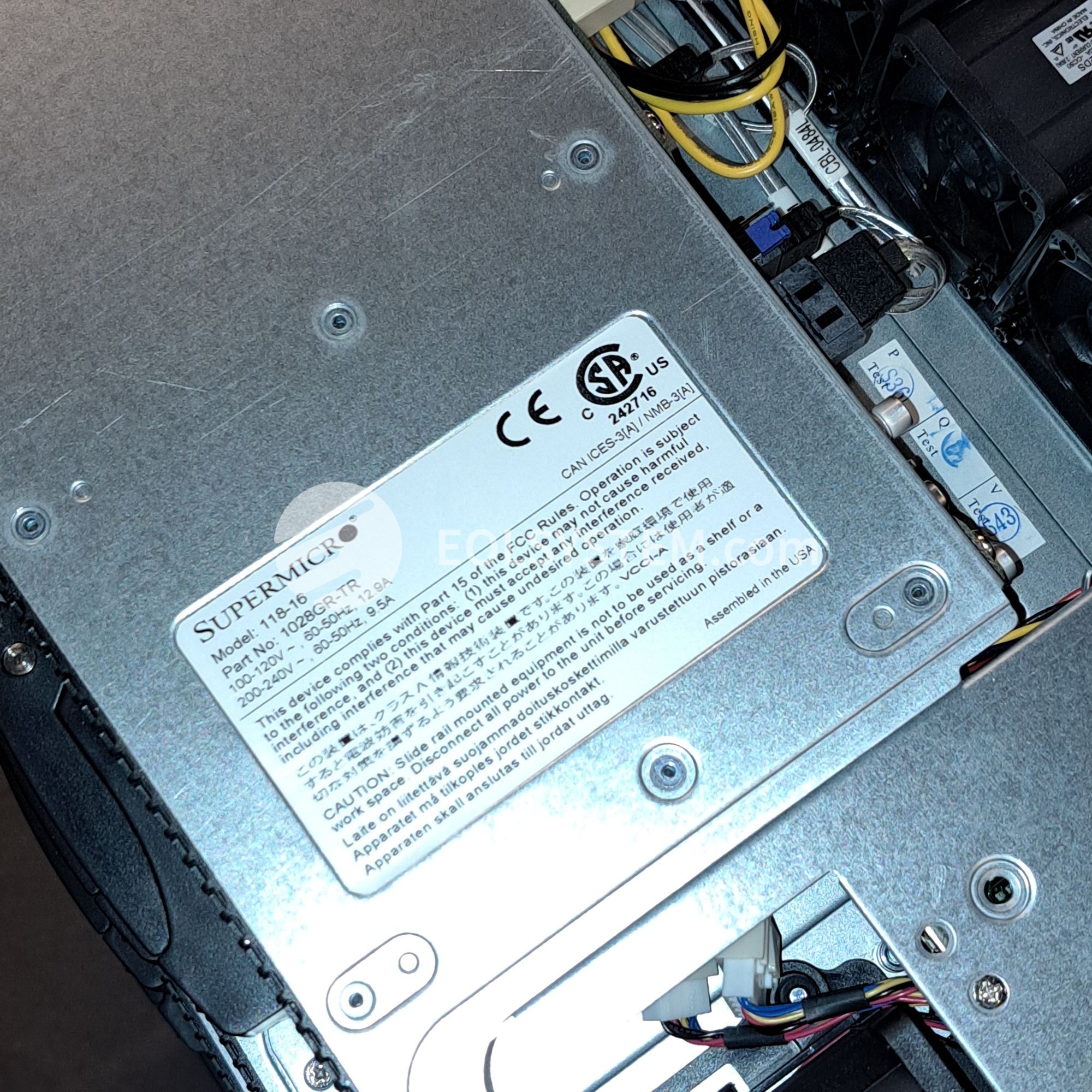

The SuperServer 1028GR-TR measures 1.7" in height, 17.2" in width, and 30.6" in depth, and it weighs 35 lbs. The server's chassis model is CSE-118GH-R1K66B.
The server is equipped with health monitoring features for CPU, FAN, temperature, and LEDs. It is also RoHS compliant and has a working temperature range of 10°C to 35°C.
| | Part Number | Qty | Description |

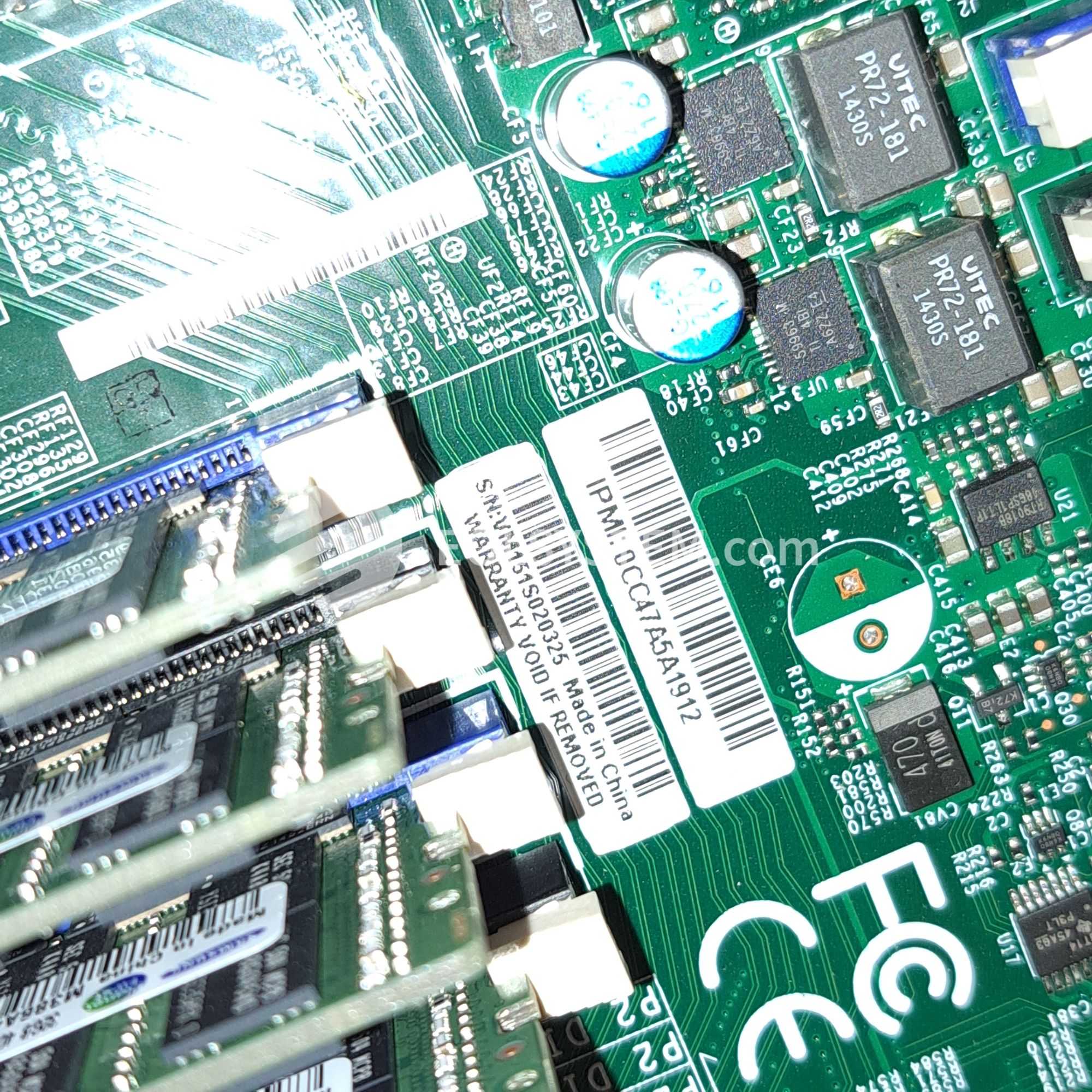

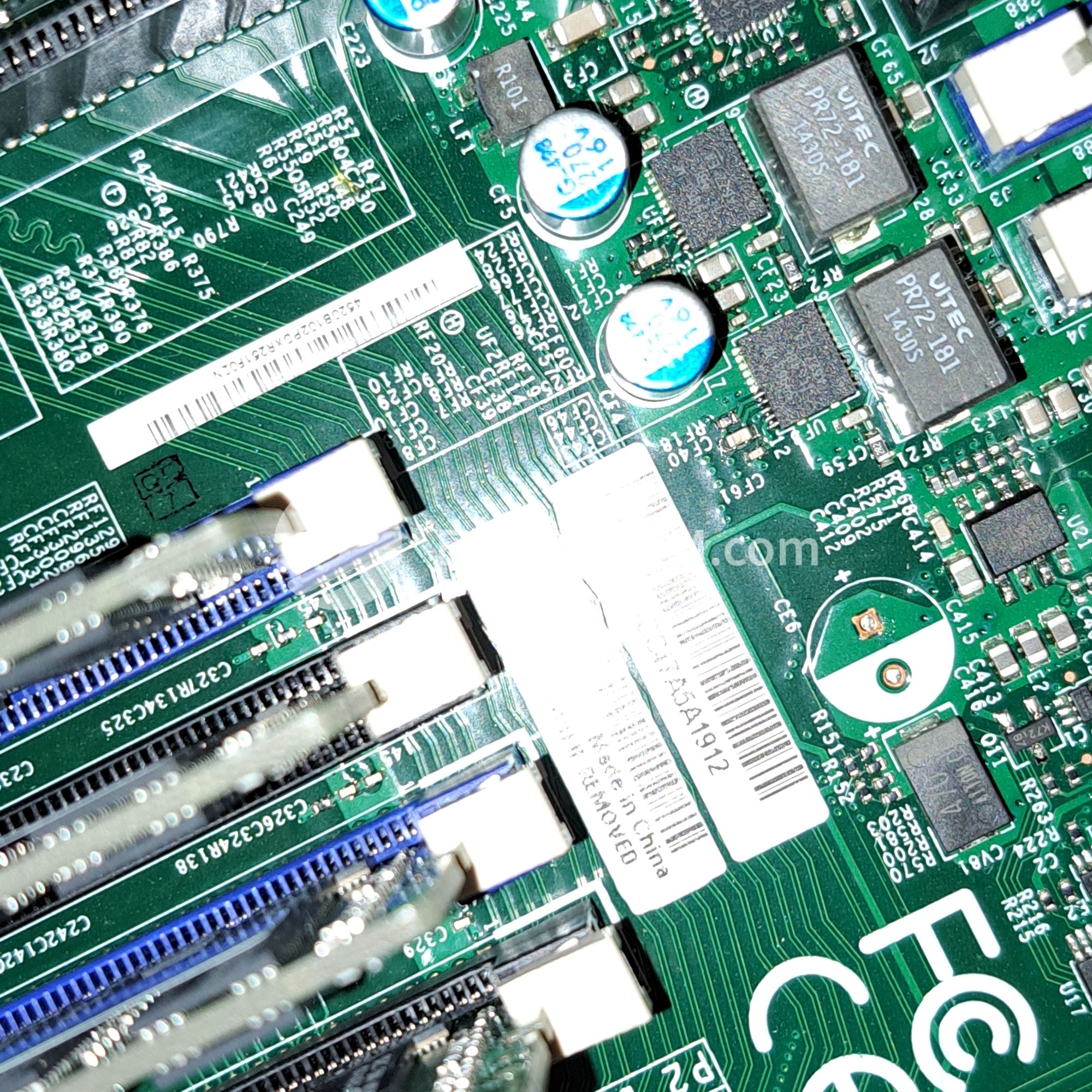

| Motherboard / Chassis | MBD-X10DRG-H CSE-118GH-R1K66B | 1 1 | Super X10DRG-H Motherboard CSE-118GH-R1K66B Chassis |
| Air Shroud | MCP-310-11803-0N | 1 | Air Shroud for Air X9DRG/X10DRG boards in CSE-118GH-R1K66B |
| Backplane | BPN-SAS-118G-4 | 1 | 4-port 1U direct-attached backplane, support up to 4x 2.5-inch SAS/SATA HDD/SSD |
| Cable 1 | CBL-0296L | 5 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Cable 2 | CBL-0157L-02 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG |
| Cable 3 | CBL-PWEX-0582 | 3 | 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH |
| Cable 4 | CBL-0460L | 1 | 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG |
| Cable 5 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | MNL-1625-QRG | 1 | SYS-1028GR-TR(T) QRG,HF,RoHS/REACH |
| Riser Card | RSC-R1UG-E16AR+II | 1 | RSC-R1UG-E16AR+II |
| Riser Card | RSC-G-A66-X | 1 | 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs |
| Riser Card | RSC-R1UG-E16R+II | 1 | RSC-R1UG-E16R+II |
| Riser Card | RSC-R1UG-E16-X9 | 1 | RSC-R1UG-E16-X9 |
| Heatsink / Retention | SNK-P0047PSC | 1 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |

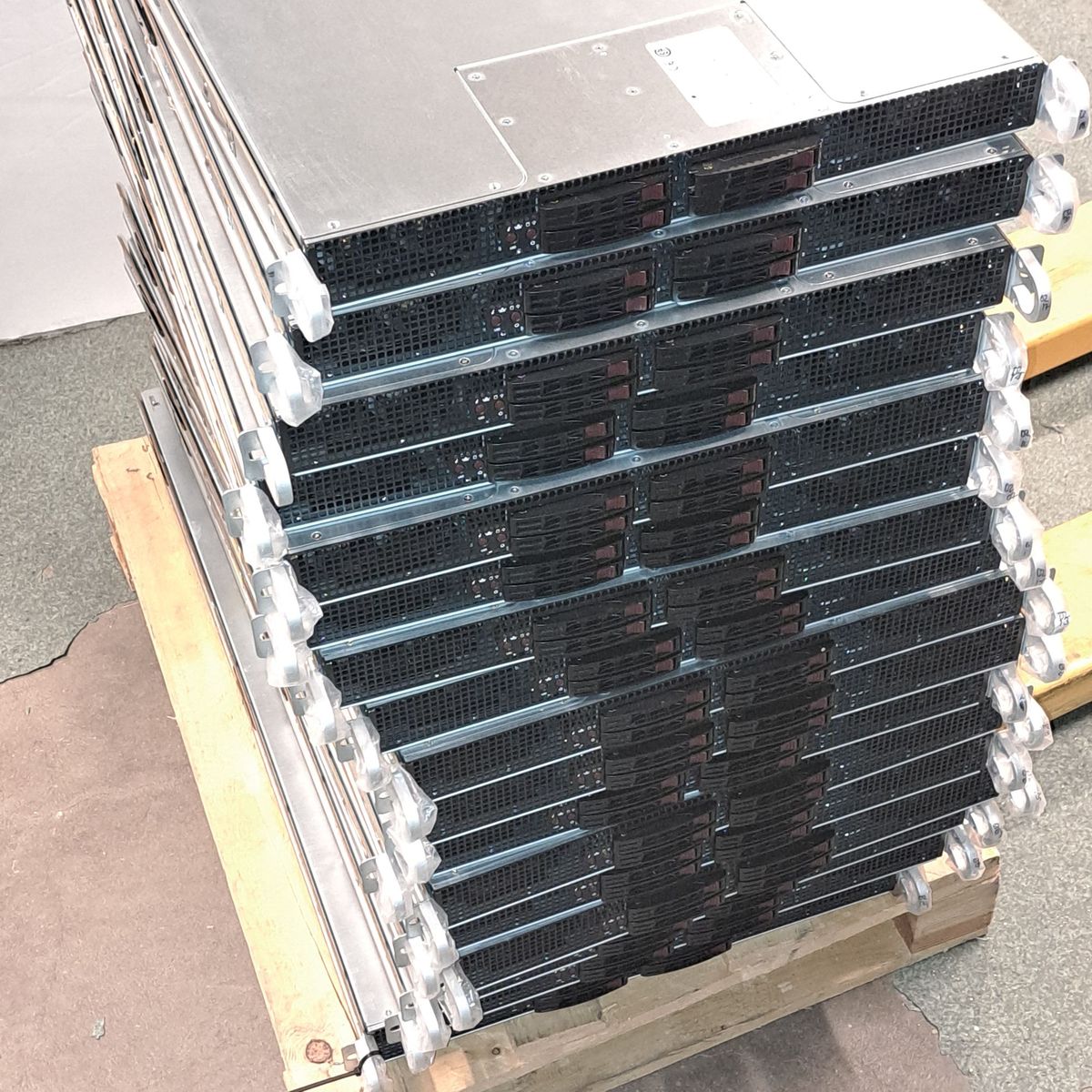

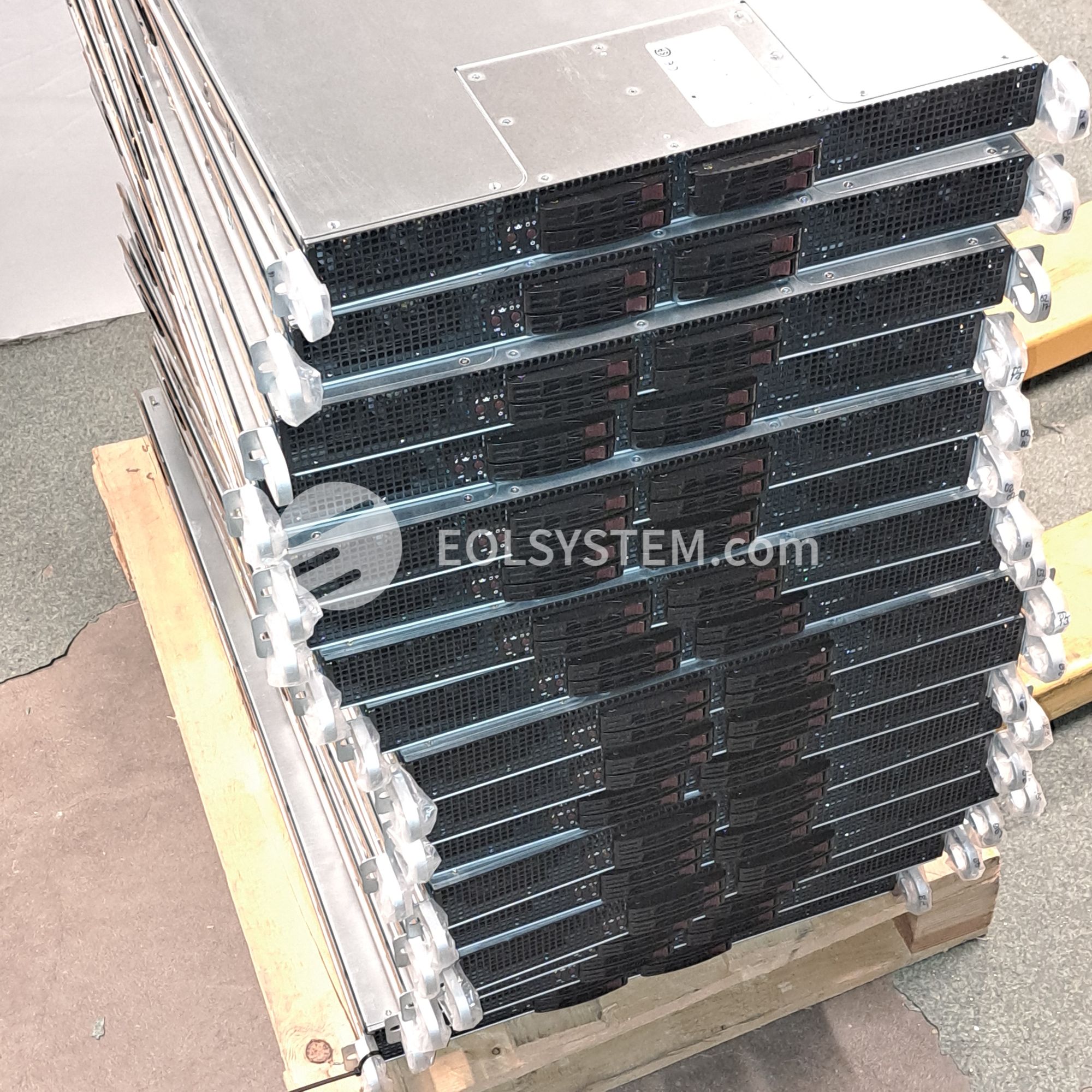

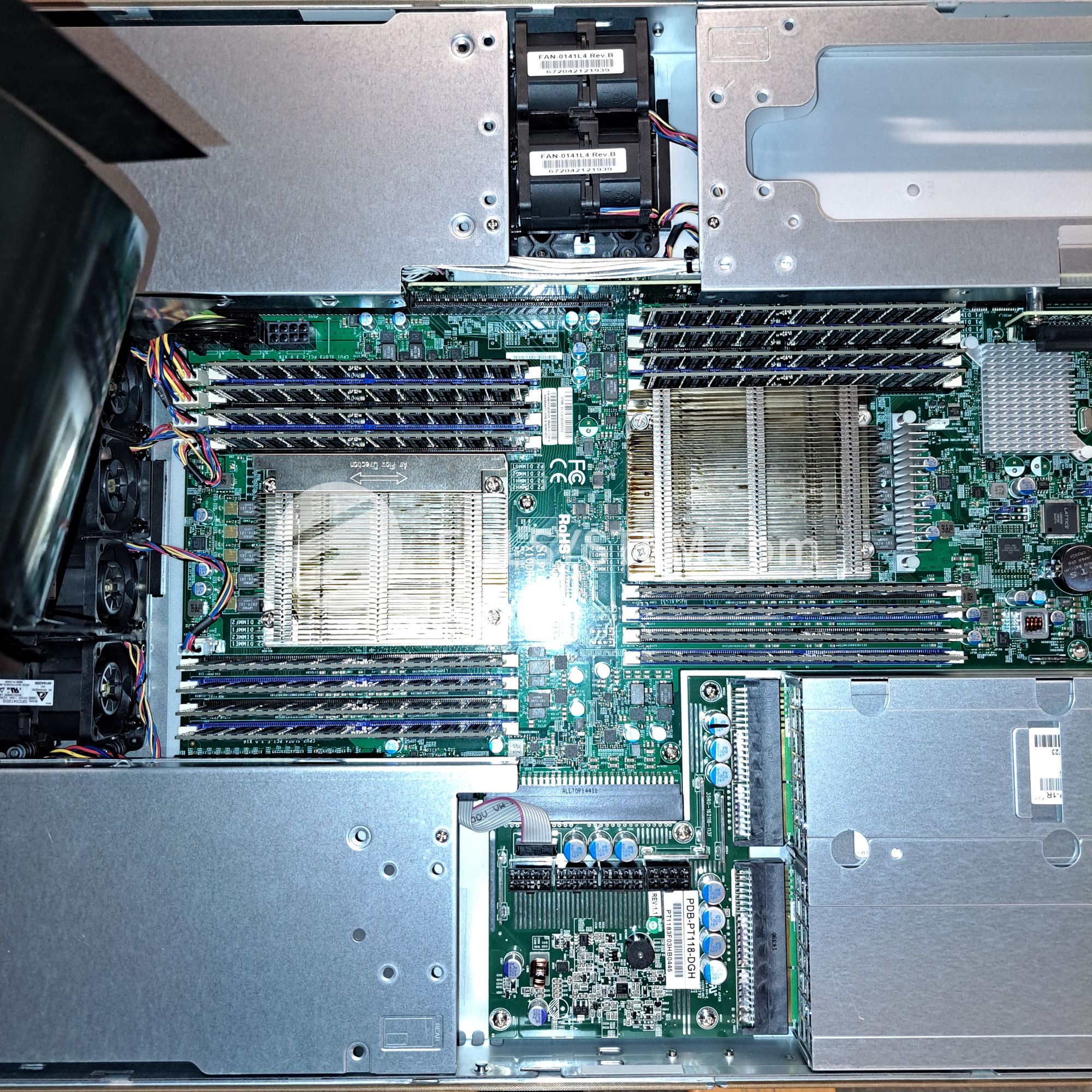

EOLSYSTEM is offering a limited-time sale on the high-performance SuperMicro's SuperServer 1028GR-TR (118-16). Equipped with the robust X10DRG-H motherboard, 512GB RAM, and dual Platinum Level efficient PSU, this server delivers exceptional performance and reliability, all within a compact 1U form factor. Take advantage of this limited-time offer and secure the SuperServer 1028GR-TR for just $475, a bargain for the capabilities this server brings to your IT infrastructure. Grab this deal at EOLSYSTEM today and experience a transformative boost in your data management and processing power.
