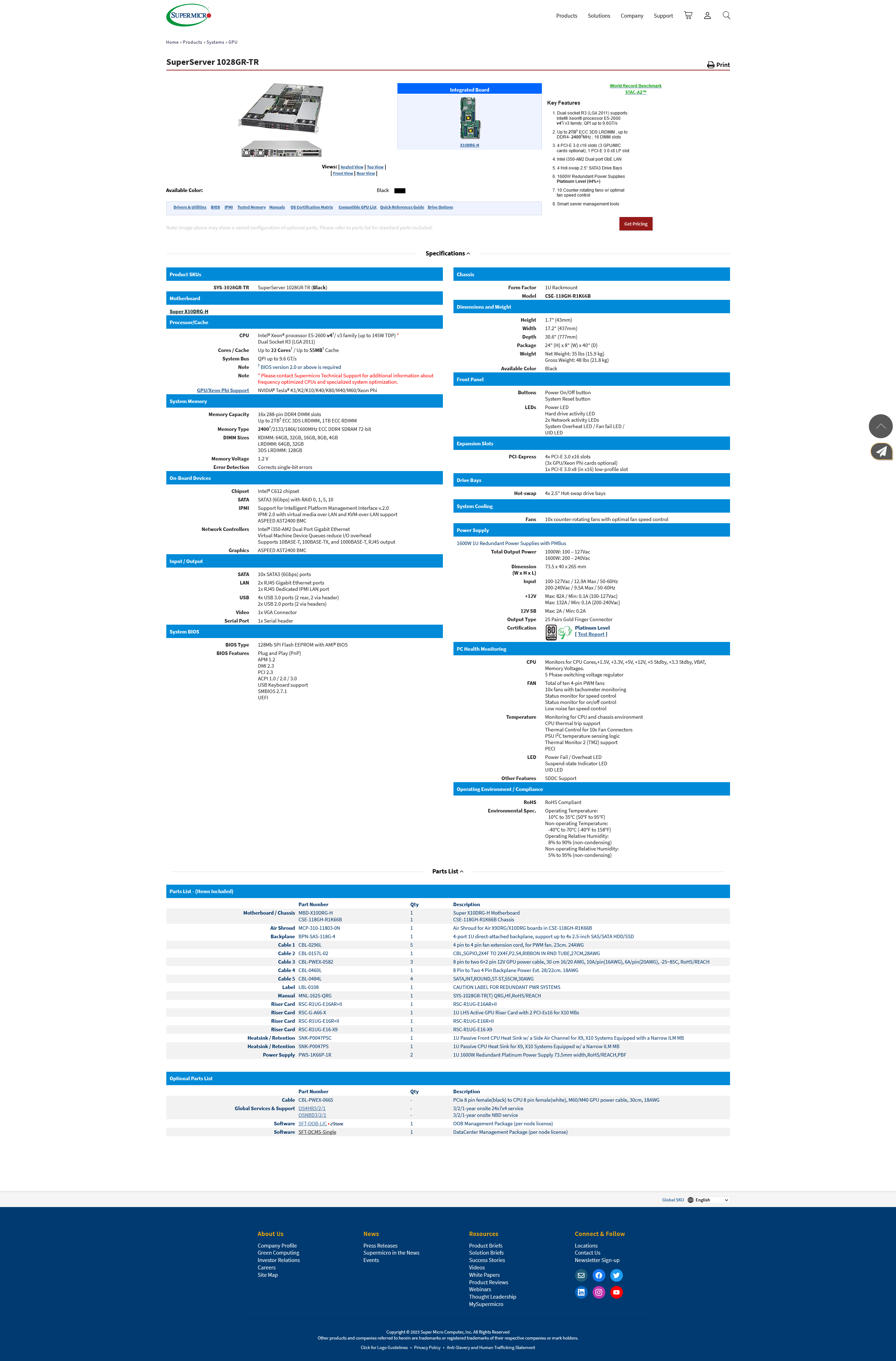

1028GR-TR Datasheet
1028GR-TR | 1U | SuperServers | Products | Super Micro Computer, Inc.

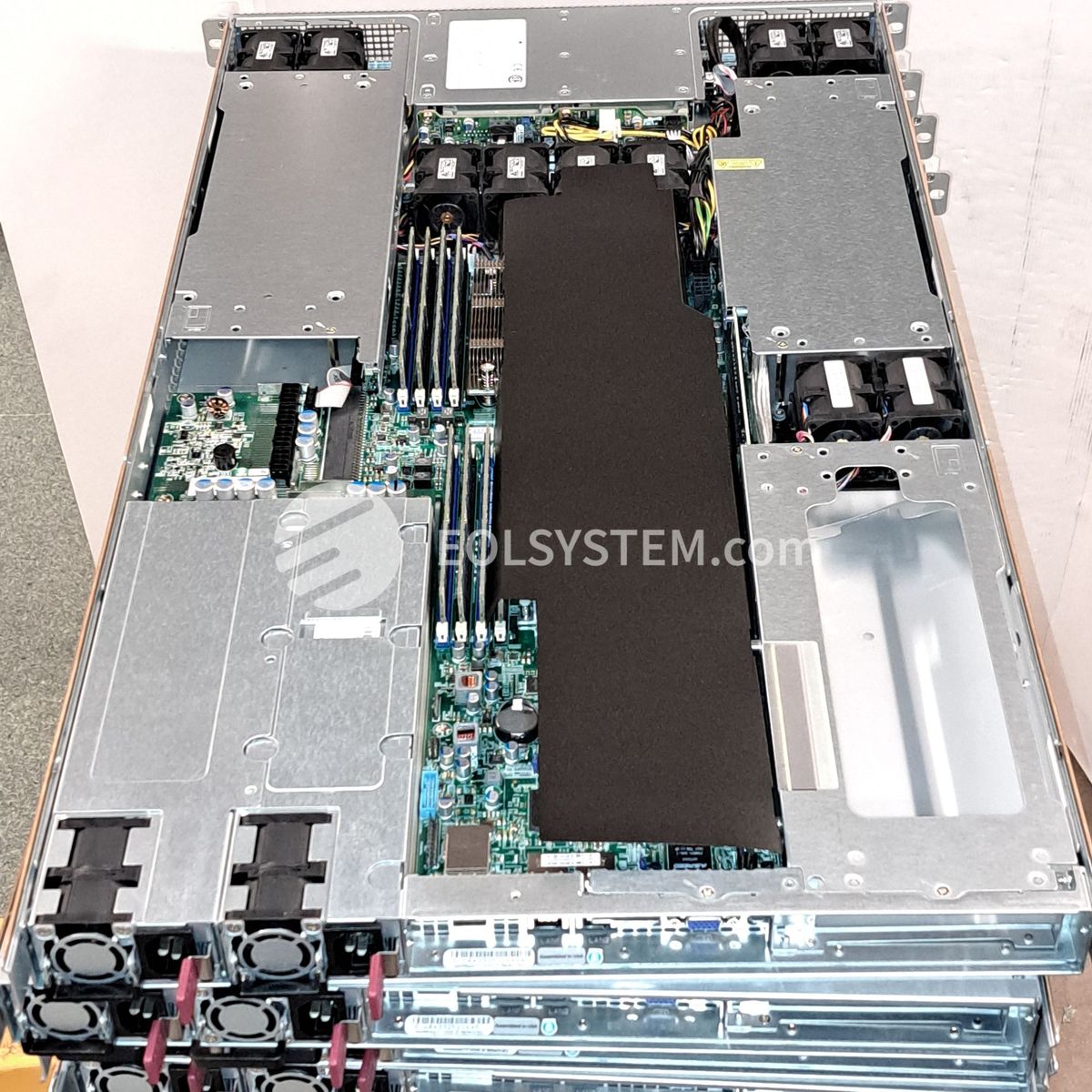

The SYS-1028GR-TR GPU system is optimized for AI, deep learning, and/or HPC applications with support of the latest GPU interconnect technologies including NVIDIA® NVLink™.
Key features of this server include:
- Dual socket R3 (LGA 2011) supporting Intel® Xeon® processor E5-2600 v4†/ v3 family with QPI up to 9.6GT/s
- Up to 2TB† ECC 3DS LRDIMM, up to DDR4- 2400†MHz with 16 DIMM slots
- 4 PCI-E 3.0 x16 slots (3 GPU/MIC cards optional), 1 PCI-E 3.0 x8 LP slot
- Intel i350-AM2 Dual port GbE LAN
- 4 Hot-swap 2.5" SATA3 Drive Bays
- 1600W Redundant Power Supplies with Platinum Level (94%+) efficiency
- 10 Counter rotating fans with optimal fan speed control
- Smart server management tools
| | Part Number | Qty | Description |
| Motherboard / Chassis | MBD-X10DRG-H CSE-118GH-R1K66B | 1 1 | Super X10DRG-H Motherboard CSE-118GH-R1K66B Chassis |
| Air Shroud | MCP-310-11803-0N | 1 | Air Shroud for Air X9DRG/X10DRG boards in CSE-118GH-R1K66B |
| Backplane | BPN-SAS-118G-4 | 1 | 4-port 1U direct-attached backplane, support up to 4x 2.5-inch SAS/SATA HDD/SSD |
| Cable 1 | CBL-0296L | 5 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
| Cable 2 | CBL-0157L-02 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,27CM,28AWG |
| Cable 3 | CBL-PWEX-0582 | 3 | 8 pin to two 6+2 pin 12V GPU power cable, 30 cm 16/20 AWG, 10A/pin(16AWG), 6A/pin(20AWG), -25~85C, RoHS/REACH |
| Cable 4 | CBL-0460L | 1 | 8 Pin to Two 4 Pin Backplane Power Ext. 28/22cm. 18AWG |
| Cable 5 | CBL-0484L | 4 | SATA,INT,ROUND,ST-ST,55CM,30AWG |
| Label | LBL-0108 | 1 | CAUTION LABEL FOR REDUNDANT PWR SYSTEMS |
| Manual | MNL-1625-QRG | 1 | SYS-1028GR-TR(T) QRG,HF,RoHS/REACH |
| Riser Card | RSC-R1UG-E16AR+II | 1 | RSC-R1UG-E16AR+II |
| Riser Card | RSC-G-A66-X | 1 | 1U LHS Active GPU Riser Card with 2 PCI-Ex16 for X10 MBs |
| Riser Card | RSC-R1UG-E16R+II | 1 | RSC-R1UG-E16R+II |
| Riser Card | RSC-R1UG-E16-X9 | 1 | RSC-R1UG-E16-X9 |
| Heatsink / Retention | SNK-P0047PSC | 1 | 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB |
| Heatsink / Retention | SNK-P0047PS | 1 | 1U Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB |
| Power Supply | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |
